Boat Designs & Blueprints

Design No.
067
35' x 9'6 Steel Warping Tug. Model #35.
1024 Pixels
BLUEPRINTS
Dec., 1934.
300 DPI Scan
Design No.
077
22' x 6' 6" Power Boom Boat.
1024 Pixels
BLUEPRINTS
Sept. 13th, 1935
300 DPI Scan

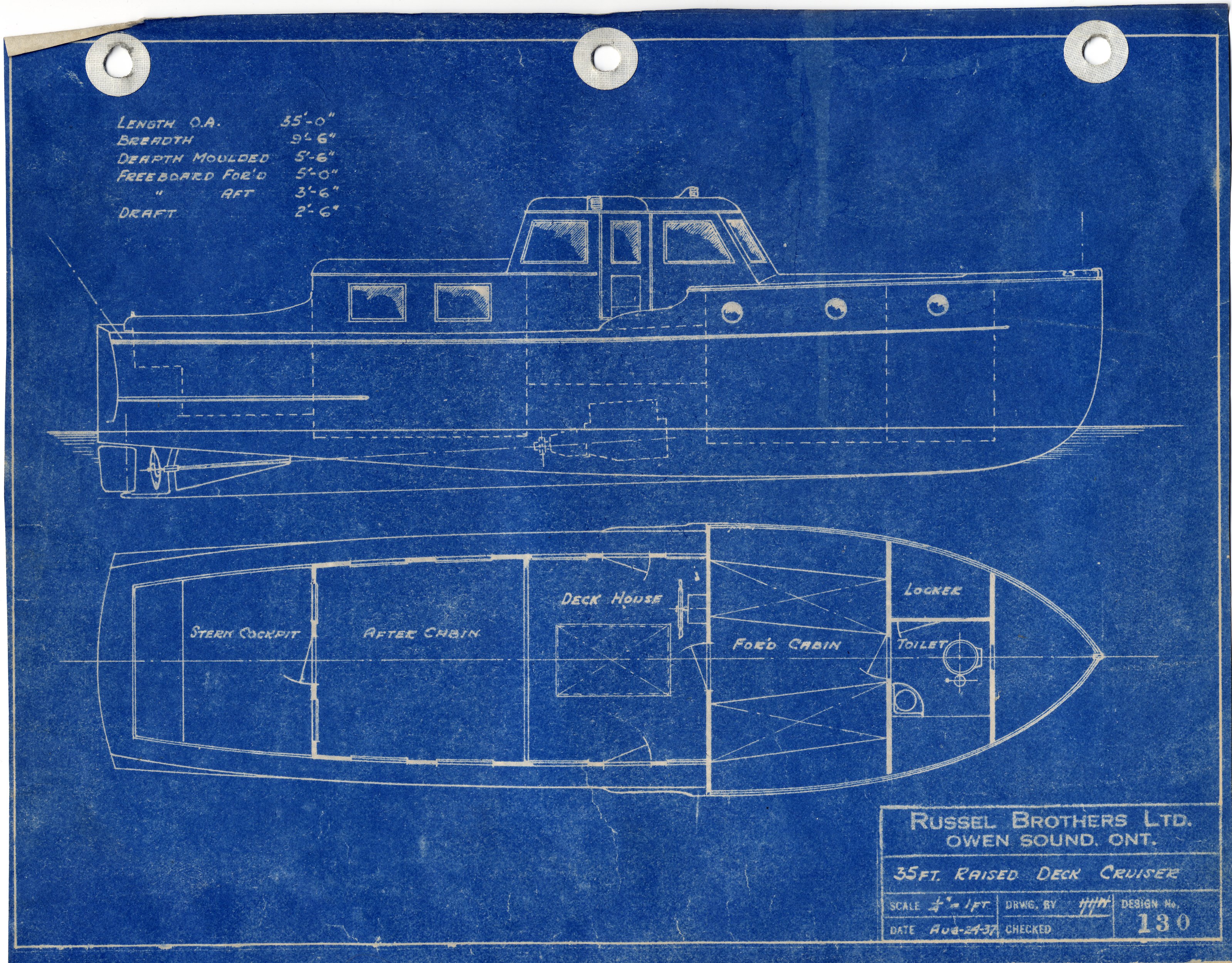

Design No.
130
35' Raised Deck Cruiser
RAE II 35' x 9’ 6 Cabin Launch.
Built for the Abitibi Power & Paper Company.
1024 Pixels
BLUEPRINTS
Aug. 24th, 1937
300 DPI Scan
CLICK FOR PHOTO
Design No.
149
70' x 32' 12 Car Ferry
THE QUINTE Hull #319. Cummins Diesel driving fore and aft propellors. 1939.
CLICK FOR MORE PHOTOS
Design No.
168
60' x 15' Shallow Draft Tug.
RADIUM EXPRESS Hull #324. Power: Twin Vivian diesel engines. 1939.
CLICK FOR MORE PHOTOS
Design No.
205
25' x 13'. Pile Driver Scow.
Design #205. Hull #350. Built for Mrs. Girardin of Leamington, ON. c. 1940.
CLICK FOR MORE PHOTOS
Design No.
210
65' x 17' Steam Tug.
LYNN B. Hull #359. Boone Dredging Co., Toronto ON. c. 1940.
CLICK FOR MORE PHOTOS
Design No.
216
30' x 7' Pointer, Std. or Shallow Draft.
Hull #364. Power: 10hp Russel engine. Built for Québec Noth Shore Paper Co., Montreal. c. 1940.
CLICK FOR PHOTOS
Design No.
222
30' x 8' Utility Launch
Hull #418. Power: 75 hp Russel Express gasoline engine.
CLICK FOR MORE PHOTOS
Design No.
228
22'6" x 6'6" Open Winch Boat
TOBY also Hull #613. Power: 10hp Russel gasoline engine.
1024 Pixels
BLUEPRINTS
Nov. 20th, 1940
300 DPI Scan
CLICK FOR MORE PHOTOS
Design No.
231
60' Twin Screw Harbour Tug
ALLAGASH Hull #388. Twin Cummins K0M-603 diesels. 1941.
CLICK FOR PHOTO
Design No.
237
55' x 13' 6" Warping Tug.
DECELLES Hull #420. Power: One Cummins K0M-603. 1941.
CLICK FOR PHOTO
Design No.
240
45' x 12' 10" Warping Tug.
JOSE D. Hull #661. Power: 200 hp supercharged Cummins diesel. 1947.
CLICK FOR PHOTO

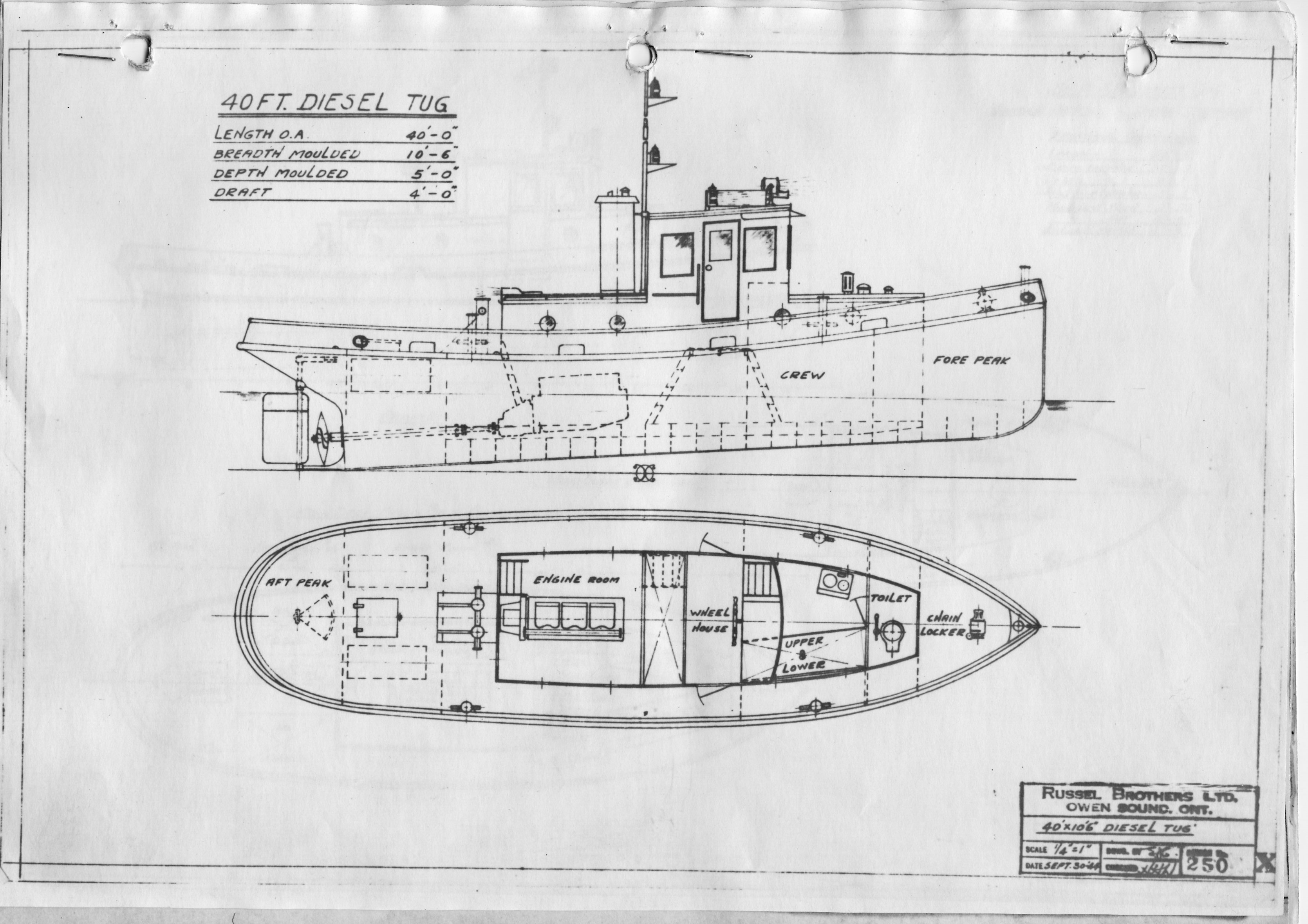

Design No.
250
40' x 10' 6" "Ville" class General Tug.
R. H. DAUGHNEY Hull #512. Power: 150hp Cummins diesel. 1945.
1024 Pixels
BLUEPRINTS
Sept. 30th, 1944
300 DPI Scan
CLICK FOR MORE PHOTOS
Design No.
251
80' x 20' "Glen" class Harbour Tug.
GLENSIDE Hull #486. Power: 400 hp Enterprise engine. Royal Canadian Navy. 1944.
CLICK FOR PHOTO
Design No.
256
30' x 8' 6" Utility Boat.
Hull #652 (Open) and #616 (Cabin).
Power: Sheppard 20 hp diesel marine engine.
CLICK FOR PHOTO
Design No.
264
81.8 x 18.2 Shallow Draft Warping Tug.
T. GIBBENS Hull #615. 150 hp Fairbanks Morse diesel.
CLICK FOR PHOTO
Design No.
270
50' x 13' 6" Warping Tug.
KAYVEE Hull #548. Twin 150 hp Cummins diesels.
1024 Pixels
BLUEPRINTS
Oct. 5th, 1945
300 DPI Scan
CLICK FOR PHOTO
Design No.
273
80' x 20' Icebreaker and Harbour Tug.
ATOMIC Hull #562. 600 hp Enterprise engine. 1945 or 1946.
N.B. - Original Russel company records show BOTH Atomic and Malden as being design #273.
CLICK FOR PHOTO
Design No.
273
150' x 42' Decked Scow.
MALDEN Hull #568. 1946.
N.B. - Original Russel company records show BOTH Atomic and Malden as being design #273.
CLICK FOR PHOTO
Design No.
284
35' Double Cabin Cruiser
PIJITIC Hull #609. 35' x 11'. Chrysler Royal gasoline marine engine.
1024 Pixels
BLUEPRINTS
Dec. 12th, 1945
300 DPI Scan
CLICK FOR PHOTO
Design No.
287
37' Warping Tug
DRYDEN 4 37'6 x 10’0; draft 3'6
1024 Pixels
BLUEPRINTS
Sept. 10th, 1946
300 DPI Scan
CLICK FOR PHOTO
Design No.
290
40' x 10' 6" Diesel Warping Tug.
1024 Pixels
BLUEPRINTS
Sept. 7th, 1946
300 DPI Scan
Design No.
293
28' x 8' Forest Patrol Launch.
Hull #667. Power: 100 hp Cummins diesel marine engine.
CLICK FOR PHOTO
Design No.
300
35' x 9'6" General Tug with Pusher Frame.
Hull #606. Power: 150 hp Cummins.
C. A. Pitts Contractors, St. Catherines.
CLICK FOR PHOTO
Design No.
306
45' x 12'6" River Tug.
Hull #624. Power: 120 hp Vivian and Buda Diesels. Made for the French Government of Indo China.
1024 Pixels
BLUEPRINTS
April 24th, 1946
300 DPI Scan
CLICK FOR PHOTO
Design No.
307
52' x 14' De Luxe Cruiser.
ARBEE II Hull #607. Power: Cummins 200 hp diesel engine. J. Ellsworth Rogers, Toronto.
CLICK FOR PHOTO
Design No.
308
40' x 11' Indian Agents Launch.
CHIPEWYAN Hull #692. Cummins 150 hp diesel marine engine. 1940.
CLICK FOR PHOTO
Design No.
319
60' x 15' Buoy Maintenance Vessel.
PILOT II Hull #693. Twin Chrysler Royal engines. Dept. of Transport, Great Bear Lake.
CLICK FOR PHOTO

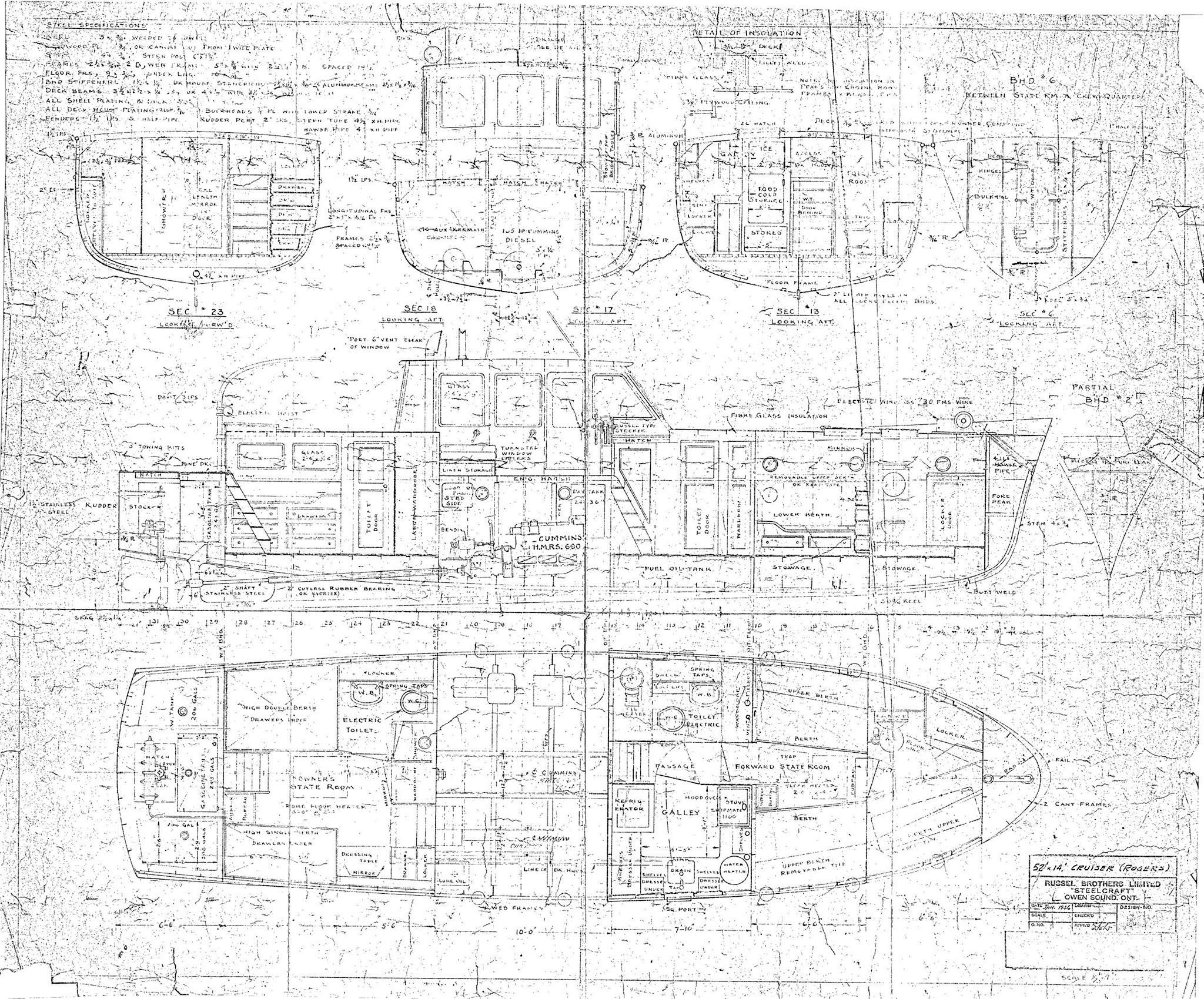

Design No.
322
41’ 8 x 12’ x 3’ 9; 11 g.t.; 9 n.t.; 125 hp.
Bustard Clipper The Bustard Clipper is a standard V-bottom Georgian Bay fish boat.
CLICK FOR PHOTOS
Design No.
329
30' x 9' Utility Launch.
Hull #745. Grey 93 hp V-drive engine. Built for Canadian International Paper, Angliers, QC.
CLICK FOR PHOTO
Design No.
330
25' x 9' Utility Runabout.
Hull #697. Chrysler Royal gasoline marine engine. Built for Ontario - Minnesota Pulp & Paper, Fort Frances, ON.
CLICK FOR PHOTO
Design No.
331
31’0 x 10’ – 37 hp.
Nascopie Lighter Self-propelled lighter built to rigid specifications, to be carried aboard the Nascopie when she travelled to Arctic waters.
Design No.
333
50' x 13'6" Harbour Tug.
BROMPTON DUCHESS Hull #727. 150 hp Kahlenberg diesel. 1947.
CLICK FOR PHOTO
Design No.
338
45' x 13' Standard Fish Boat.
Hull #724. 100 hp Cummins marine diesel. 1947.
CLICK FOR PHOTO

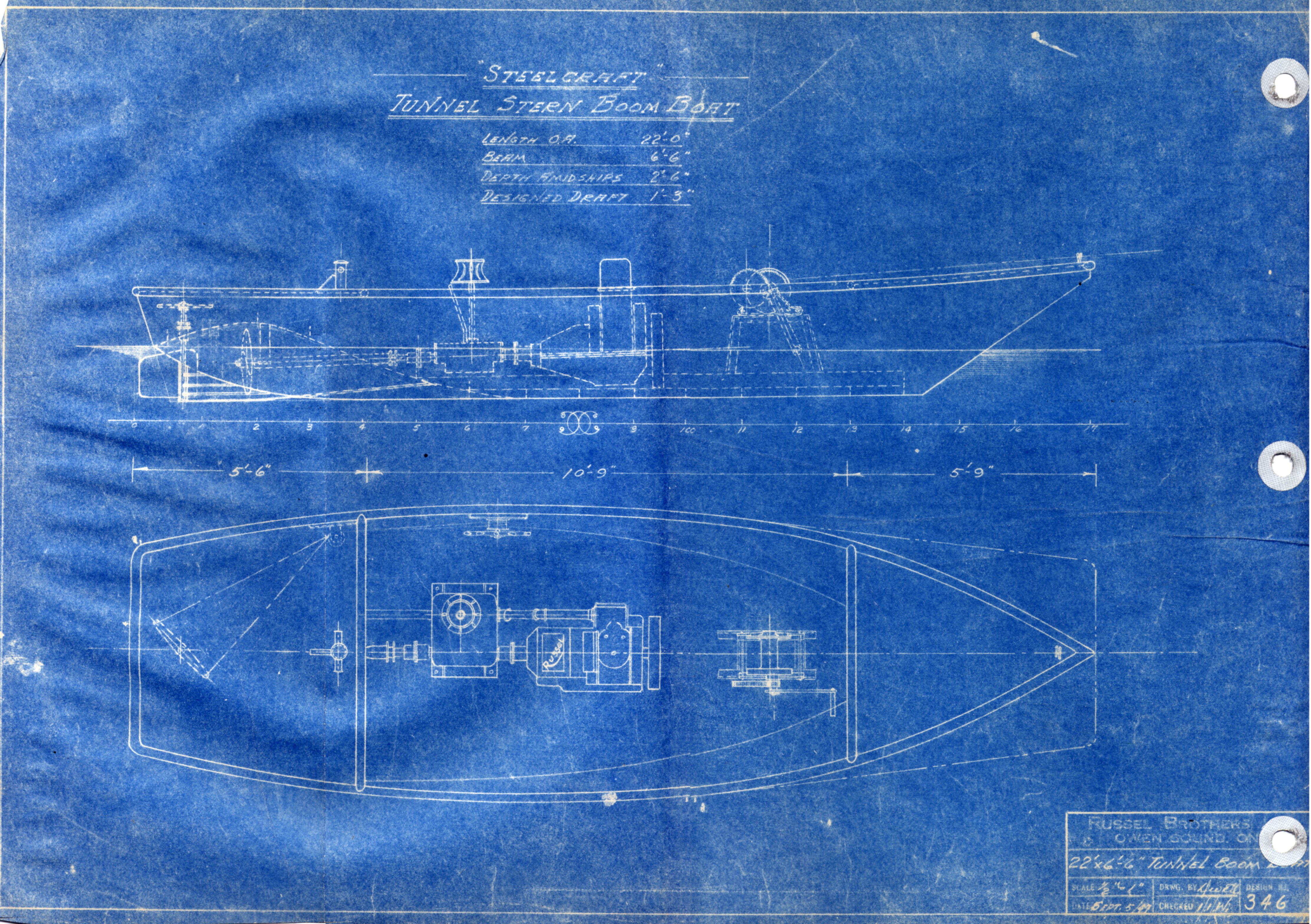

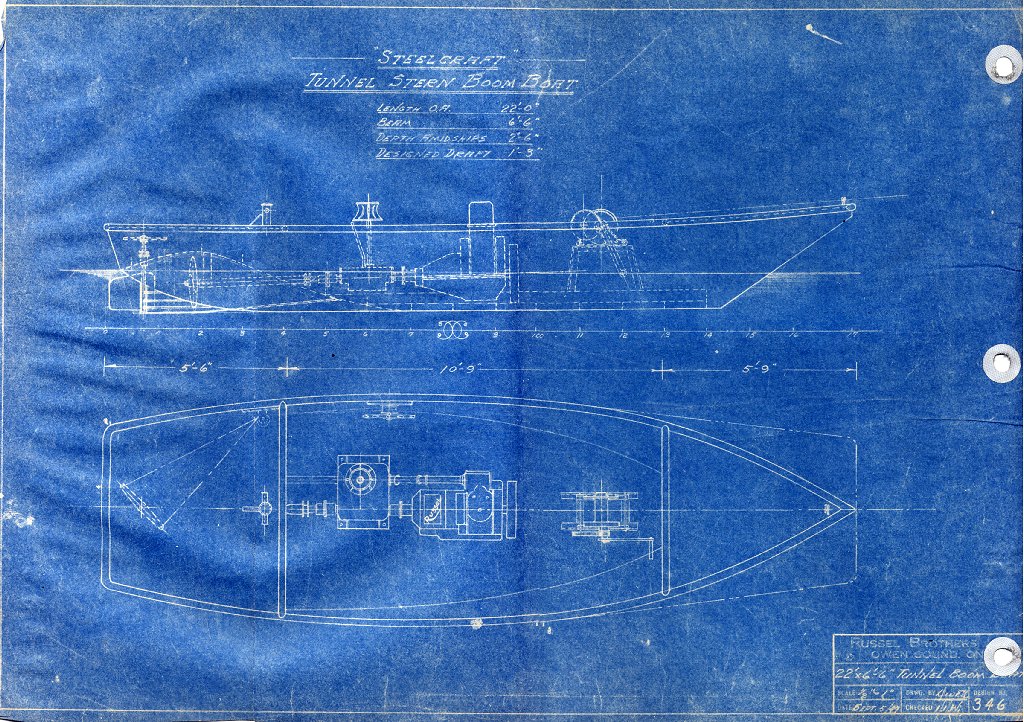

Design No.
346
22' x 6' 6" Tunnel Boom Boat.
W.B. Yvette 1948.
1024 Pixels
BLUEPRINTS
Sept. 5th, 1947
300 DPI Scan
CLICK FOR BOAT PAGE
Design No.
356
35' x 10' Single Screw Diesel Tug.
1024 Pixels
BLUEPRINTS
Dec. 4th, 1947
300 DPI Scan
Design No.
391
West African Service Launch
35' x 10'. 94hp.
CLICK FOR PHOTO
Design No.
421
RCAF Seaplane Tender.
26' x 8'. 115hp.
CLICK FOR PHOTO
Design No.
507
50' x 14' - 264 h.p.
Nors Operating in Arctic waters, the Nors is a twin screw welded-steel WWII landing craft.
CLICK FOR PHOTO

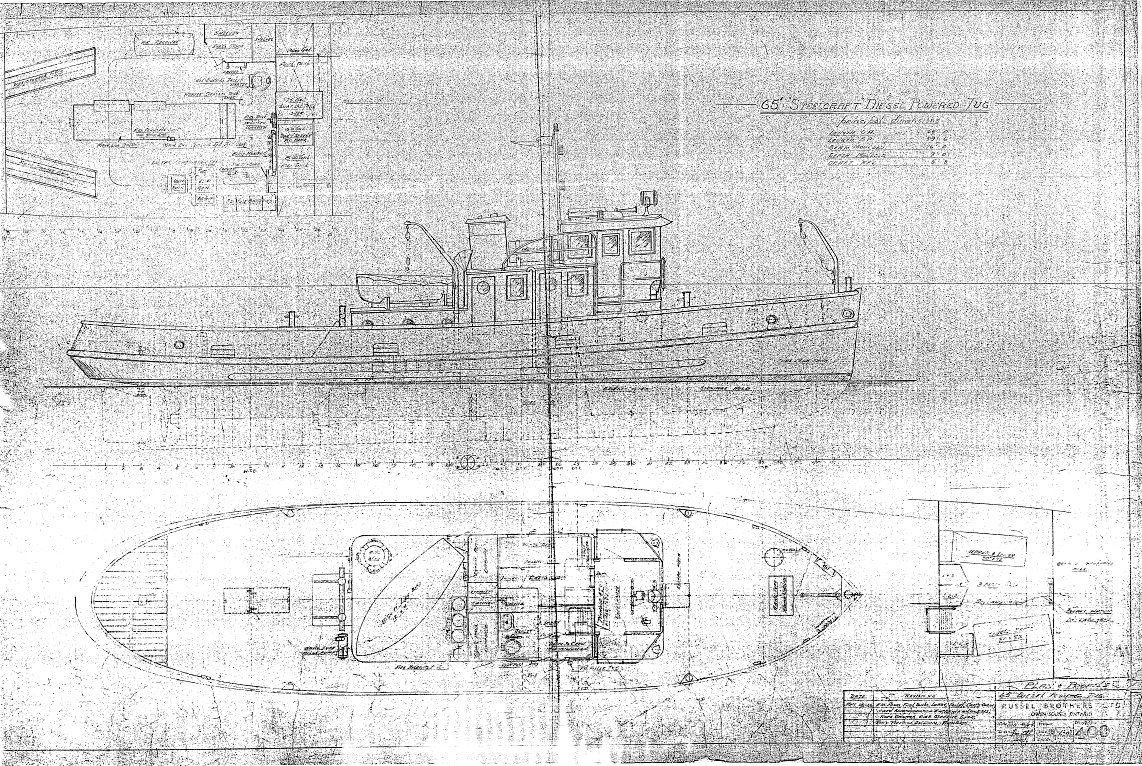

Tanac V
Navy Tug
60' Canadian Naval Tug
1943.
1024 Pixels
BLUEPRINTS
Sept. 5th, 1947
300 DPI Scan
ENLARGE

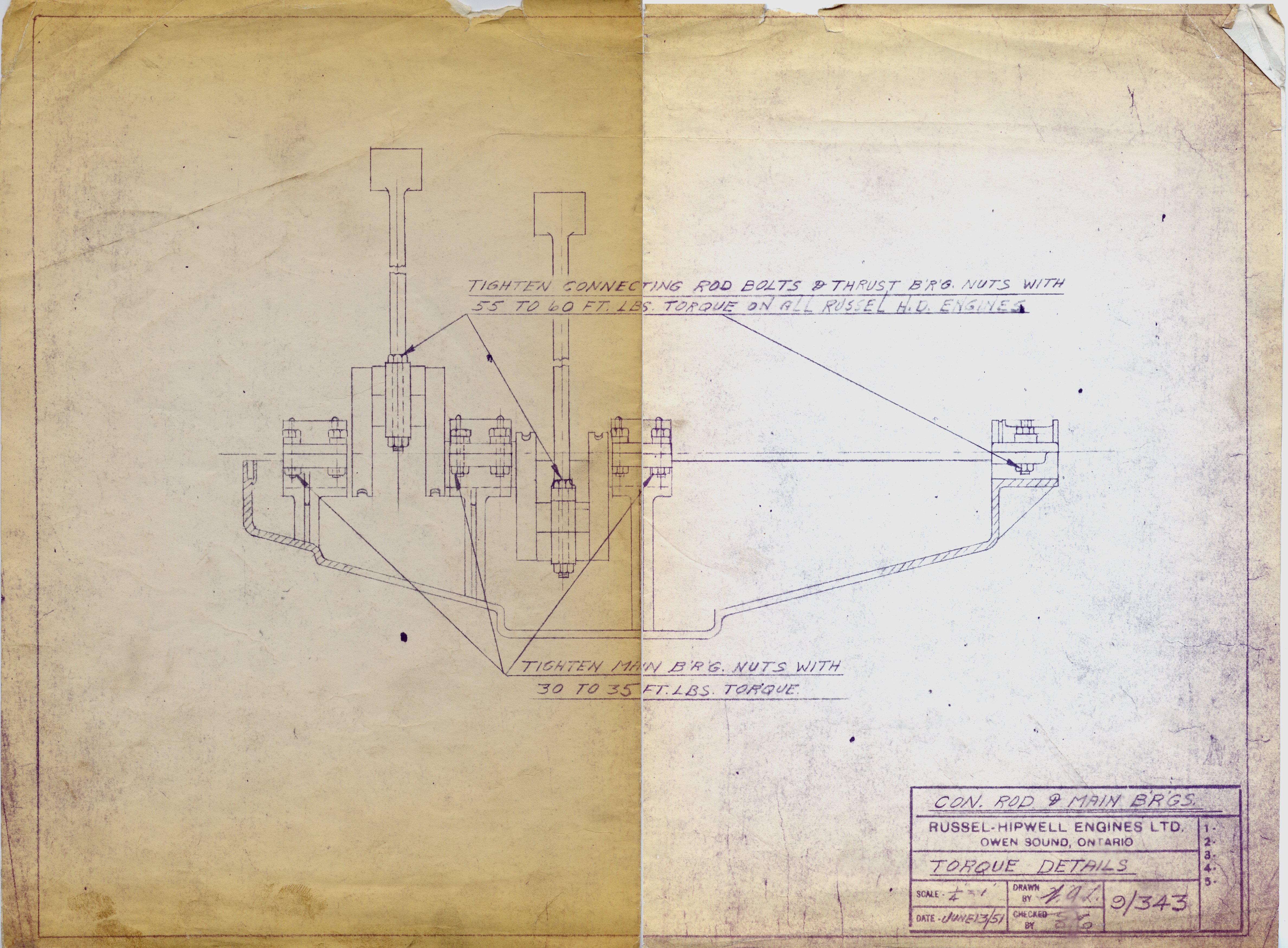

Russel HD Engine
Con. Rod and Main Bearings
Torque Details
1951.
1024 Pixels
BLUEPRINTS
Sept. 5th, 1947
300 DPI Scan
ENLARGE
Large Scale PDF Blueprints

Design No. 250
40 foot diesel tug - Sept. 30th, 1944
CLICK FOR MORE PHOTOS
Design No. 306
45 foot "Steelcraft" diesel tug - April 24th, 1946
CLICK FOR PHOTO
Design No. 356
35 foot Steelcraft tug - Dec. 4th, 1947
Montmagny Decks
Largest Russel Vessel - Sept. 20th, 1961
CLICK FOR PHOTO
PHOTOS
Montmagny General Arrangement
Largest Russel Vessel - Sept. 20th, 1961
CLICK FOR PHOTO
PHOTOS
Ville Class Tug
General Arrangement

Ville Class WWII Navy Tug
CLICK FOR PHOTO
PHOTOS
Ville Class Tug
Docking Plan

Ville Class WWII Navy Tug
CLICK FOR PHOTO
PHOTOS
Ville Class Tug
Side View

Ville Class WWII Navy Tug
CLICK FOR PHOTO
PHOTOS
Ville Marie
General Arrangement

Second largest Russel Vessel - April 3rd, 1958
CLICK FOR PHOTO
PHOTOS
Ville Marie
Docking Plan

Second largest Russel Vessel - April 3rd, 1958
CLICK FOR PHOTO
PHOTOS
Wm Lyon MacKenzie
Deck House

Toronto's fireboat since 1964
CLICK FOR PHOTO
PHOTOS
Wm Lyon MacKenzie
General Arrangement

Toronto's fireboat since 1964
CLICK FOR PHOTO
PHOTOS
Wm Lyon MacKenzie
Lines Plan

Toronto's fireboat since 1964
CLICK FOR PHOTO
PHOTOS
Wm Lyon MacKenzie
Side and Top

Toronto's fireboat since 1964
CLICK FOR PHOTO
PHOTOS
